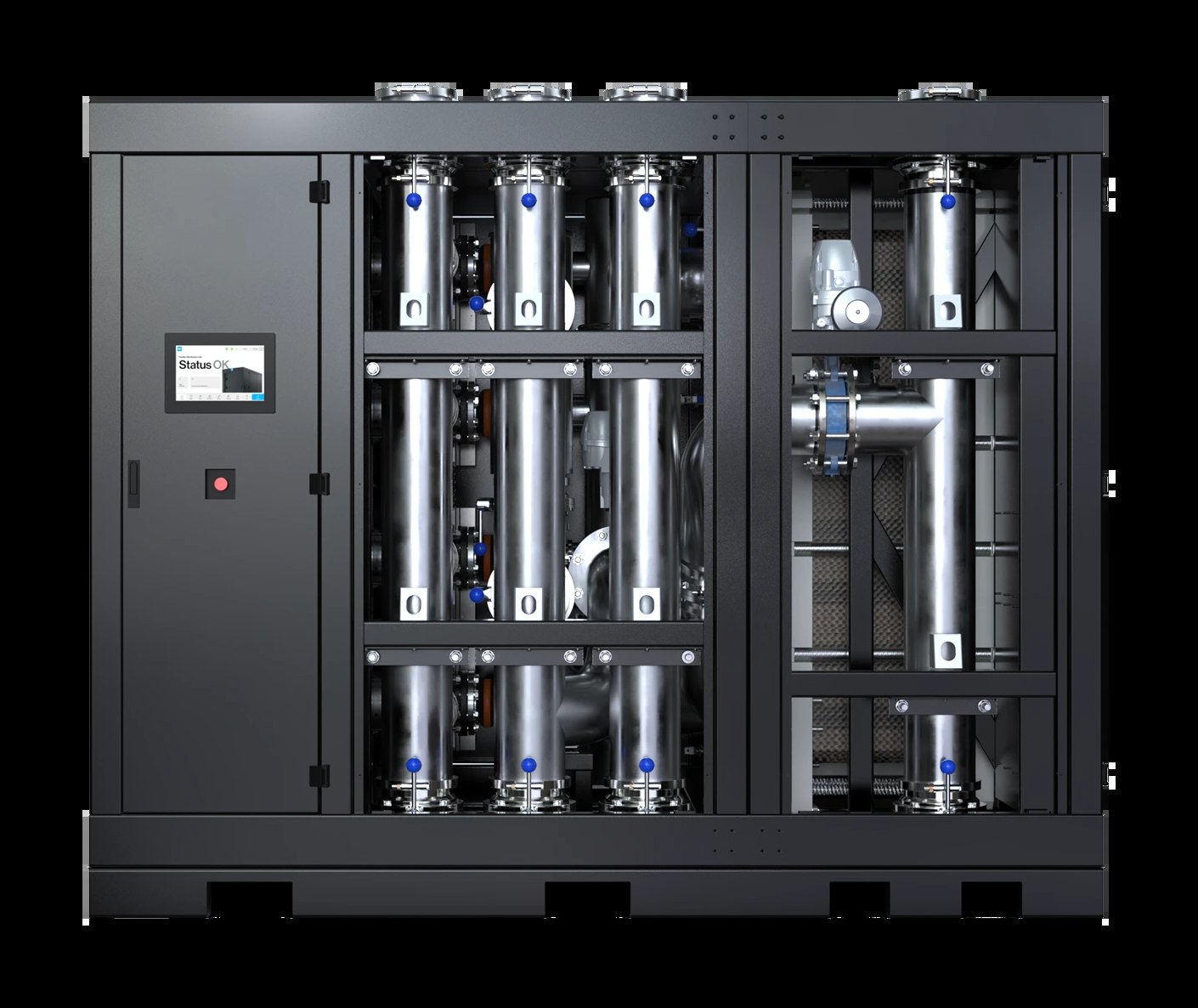

Facility CDU 5 MW
5 MW on one platform, with a heat exchanger configurable from a 4 °C to a 2 °C approach and up to 10,000 litres a minute.
Designed for the AI hall.
Configurable approach
Dual-frame heat exchanger, specified from AT4 to AT2 for the site.
Dual loop
Reduces pressure on the TCS loop and protects the IT equipment.
Smart pumping
Four VFD-driven pumps in N+1 with predictive control and energy optimisation.
Adaptive control
Control logic that follows dynamic AI workloads, with water quality built in.
Technical data.
- Heat transfer
- 5,000 kW
- Approach
- 4 °C, configurable AT4 to AT2
- Architecture
- Dual loop, modular dual-frame heat exchanger
- Rack density
- Racks above 100 kW
- Pumps
- 4 × VFD-driven, N+1 (3+1)
- Pump power
- 3 × 31.8 kW running
- Flow
- Up to 10,000 L/min, all four pumps
- Supply
- 3 × 380–480 V AC, 50/60 Hz
- L × W × H
- 3,000 × 1,500 × 2,300 mm
- Weight
- 5,700 kg transport, 6,500 kg filled
- Location
- Outside the white space
- Interface
- HMI with system overview, status and water quality views
- Logic
- Adaptive control for dynamic AI workloads
- Protocols
- BACnet, Modbus, OPC UA, SNMP, PROFINET
- Monitored
- pH, conductivity, turbidity, glycol concentration, corrosion rate, temperature
- Treatment
- Chemical dosing and pH regulation built in
Figures are manufacturer nominal values. Final selection and performance are confirmed against your design conditions.
The unit, and everything around it.
Against your rack density, approach temperature and site.
Set in place, piped, insulated and clad by our crew.
The loop behind it cleaned, filled with PG25 and certified.
One record for unit, loop and fluid.
Sampling, top-up and support for the life of the loop.
Other units.
Facility CDU 8 MW

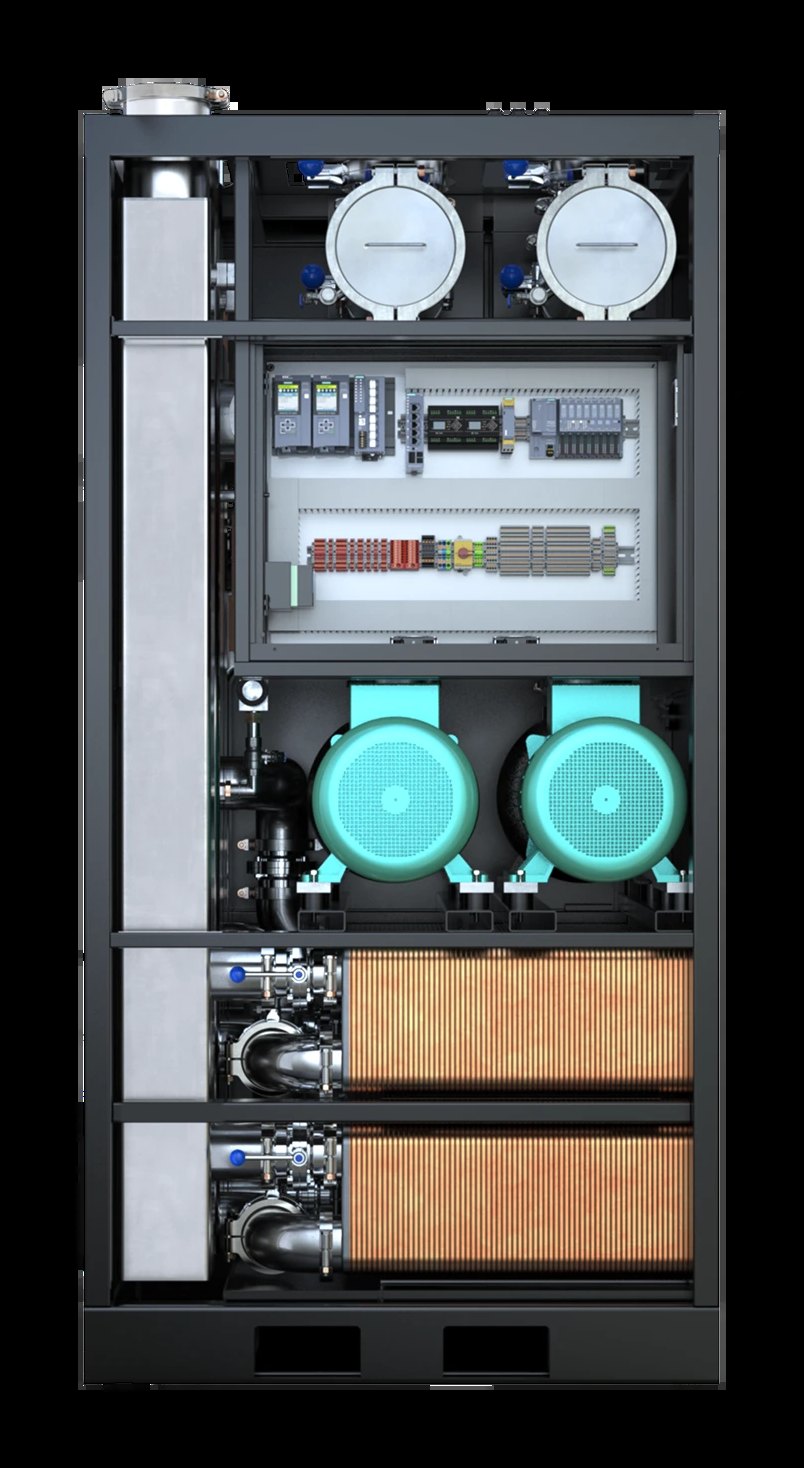

In-row CDU 1.4–2.6 MW
Dry cooler 2 MW
Specifying a hall?
Send us the load, the approach and the site. We come back with a selection within one business day.
- 01At design
The commissioning scope is right before the specification goes out.
- 02In construction
The flush and fill is programmed off the critical path.
- 03At handover
One certificate. The baseline you keep.
